Luogo di origine: | Cina |
---|---|
Marca: | SINOLIFT |
Certificazione: | CE |
Numero di modello: | SFH22AG |
Quantità di ordine minimo: | 1 set |
Prezzo: | Negoziabile |
Imballaggi particolari: | Pacchetto dell'esportazione di Sandard |
Tempi di consegna: | 15 giorni |
Termini di pagamento: | L/C, D/A, D/P, T/T, Western Union |
Capacità di alimentazione: | 1000 insiemi/bocca |
Nome prodotto: | SFH22AG MANUAL IDRAULICO IMPACHER CON GAMBE ATTENIBILI REGOLABILE | Stile di guida: | pedone |
---|---|---|---|
Capacità di carico: | 1000 kg | Peso netto: | 386 kg |
Garanzia: | 1 anno | Dopo il servizio: | Servizio online, pezzi di ricambio gratuiti |
Product Name

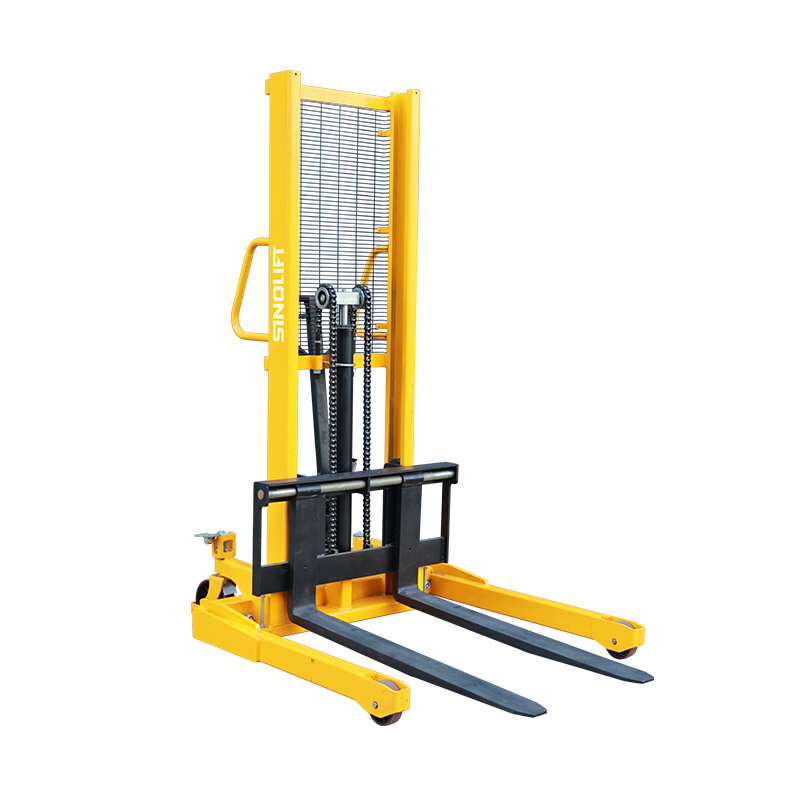

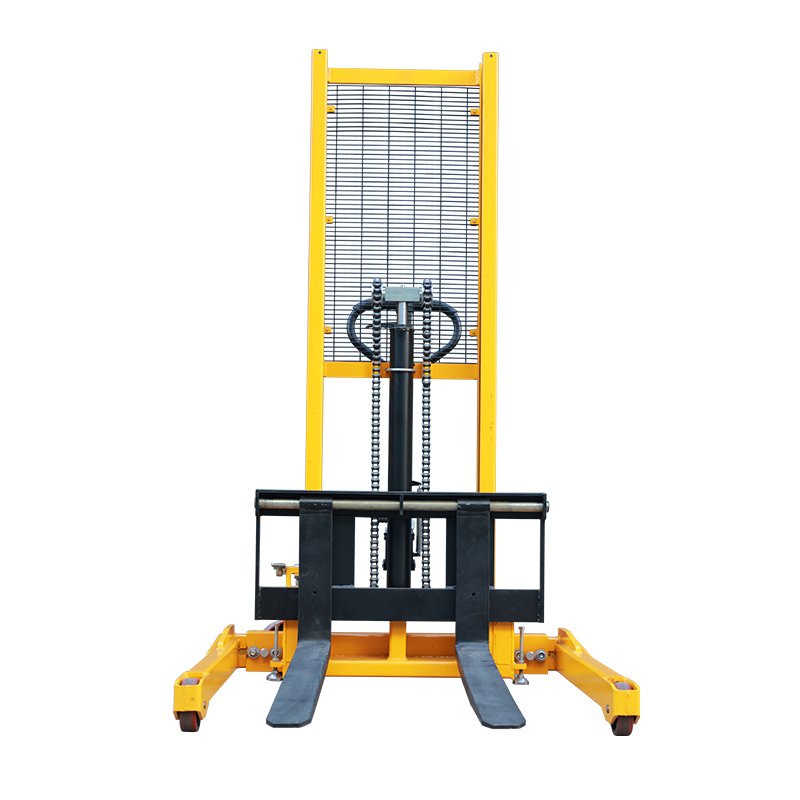

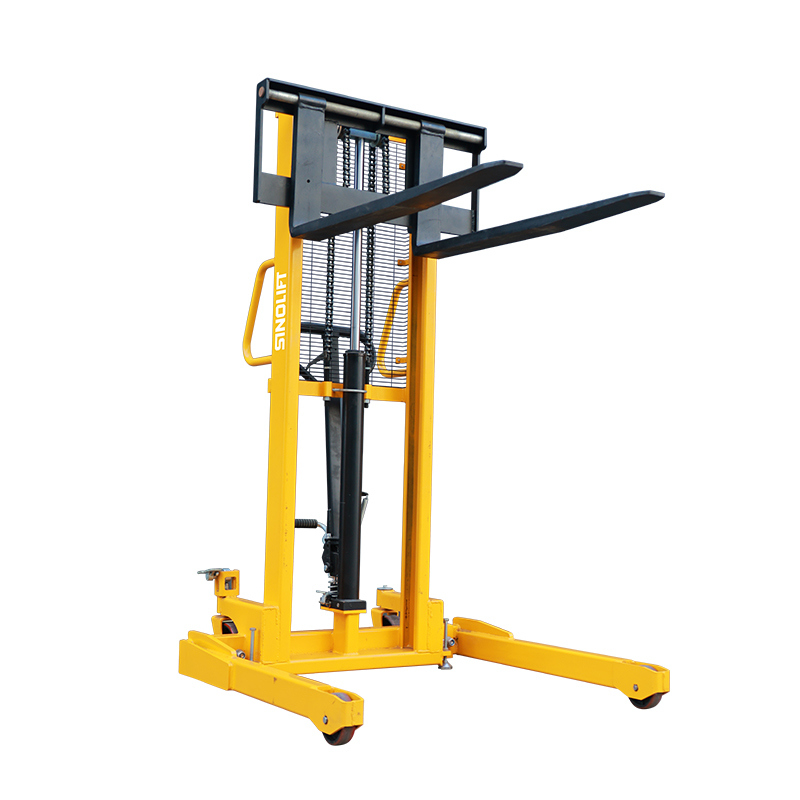

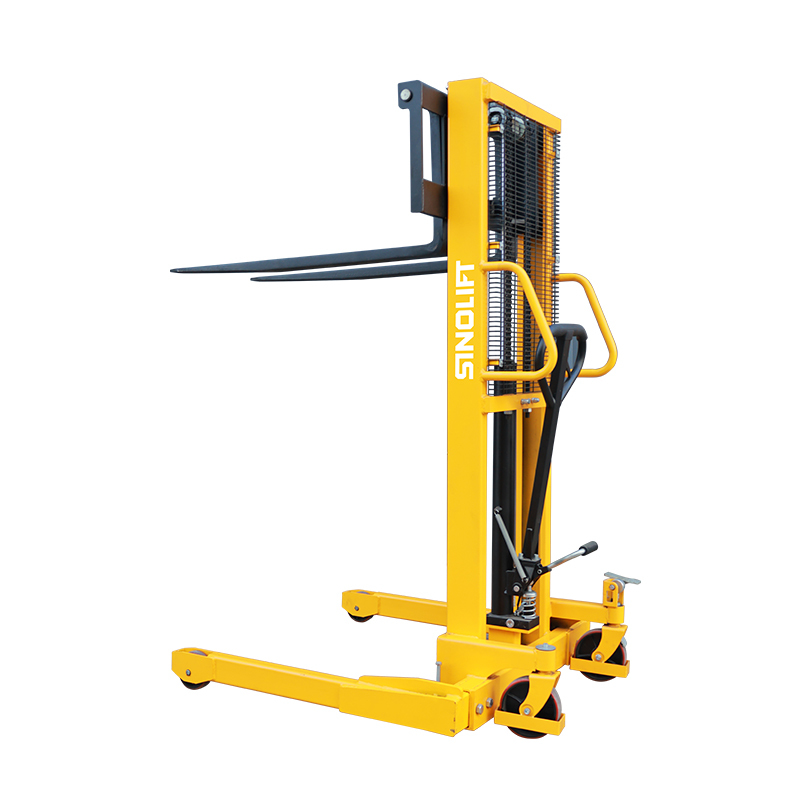

SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
This Manual Hydraulic Stacker delivers 1000 kg of robust lifting with a reinforced steel construction and export-grade durability. Its adjustable straddle legs adapt to diverse pallet types, while the compact design excels in narrow aisles and warehouses. Ideal for manufacturing, logistics, and storage facilities seeking efficient, space-saving material handling.
Key Features of SFH22AG Manual Hydraulic Stacker:
Product Specifications
SFH Series - Straddle Leg Stacker | ||||
Model | SFH22-63 | SFH22-98 | SFH22-118 | |
Load Capacity | kg | 1000 | 1000 | 1000 |
Load Center Distance | mm | 500 | 500 | 500 |
Max Lifting Height | mm | 1600 | 2500 | 3000 |
Mast Type | 1 | 2 | 2 | |
Lowered Height | mm | 70 | 70 | 70 |
Fork Length | mm | 920 | 920 | 920 |
Single Fork Width | mm | 100 | 100 | 100 |
Adjustable Fork Width | mm | 215~850 | 215~850 | 215~850 |
Inner Leg Width | mm | 915~1220 | 915~1220 | 915~1220 |
Outer Leg Width | mm | 1090~1370 | 1090~1370 | 1090~1370 |
Overall Length | mm | 1420 | 1420 | 1420 |
Overall Width | mm | 1370 | 1370 | 1370 |
Overall Height | mm | 2020 | 1770 | 2020 |
Front Wheels | mm | Φ125x50 | Φ125x50 | Φ125x50 |
Rear Wheels | mm | Φ180x50 | Φ180x50 | Φ180x50 |
Net Weight | kg | 320 | 360 | 386 |
