Luogo di origine: | Cina |
---|---|
Marca: | SINOLIFT |
Certificazione: | CE |
Numero di modello: | ND99S |
Quantità di ordine minimo: | 1 set |
Prezzo: | Negoziabile |
Imballaggi particolari: | Pacchetto dell'esportazione di Sandard |
Tempi di consegna: | 15 giorni |
Termini di pagamento: | L/c, d/a, d/p, t/t |
Capacità di alimentazione: | 1000 insiemi/bocca |
Nome prodotto: | SINOLIFT ND99S TIPILE CELLA DI CELLA DI TYPE WALKIE | Stile di guida: | pedone |
---|---|---|---|
Carico nominale: | 1000 kg | Peso netto: | 730 kg |
Garanzia: | 1 anno | Dopo il servizio: | Servizio online, pezzi di ricambio gratuiti |
Product Name

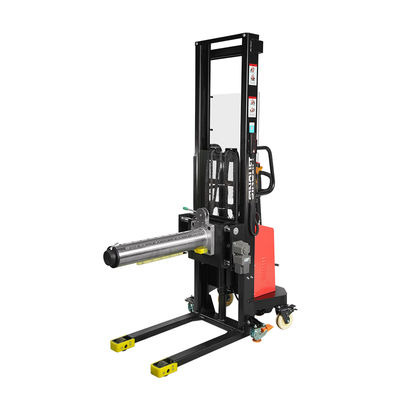

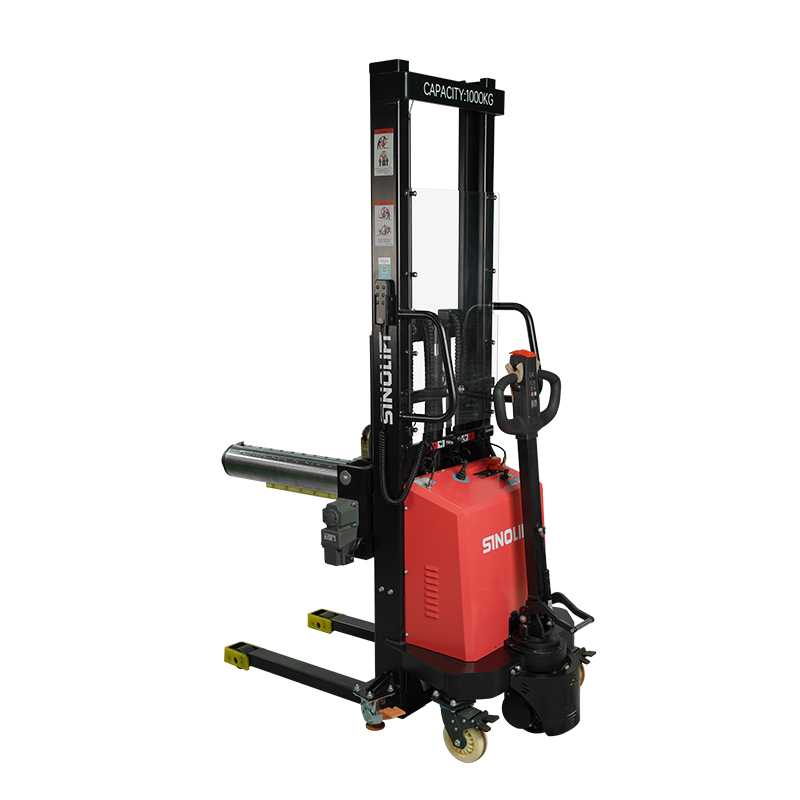

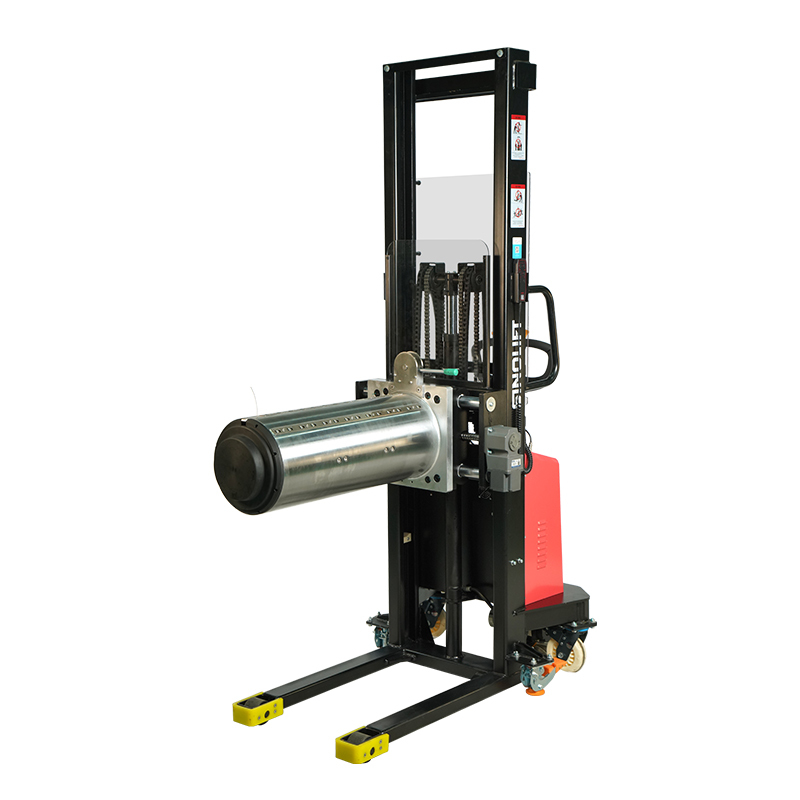

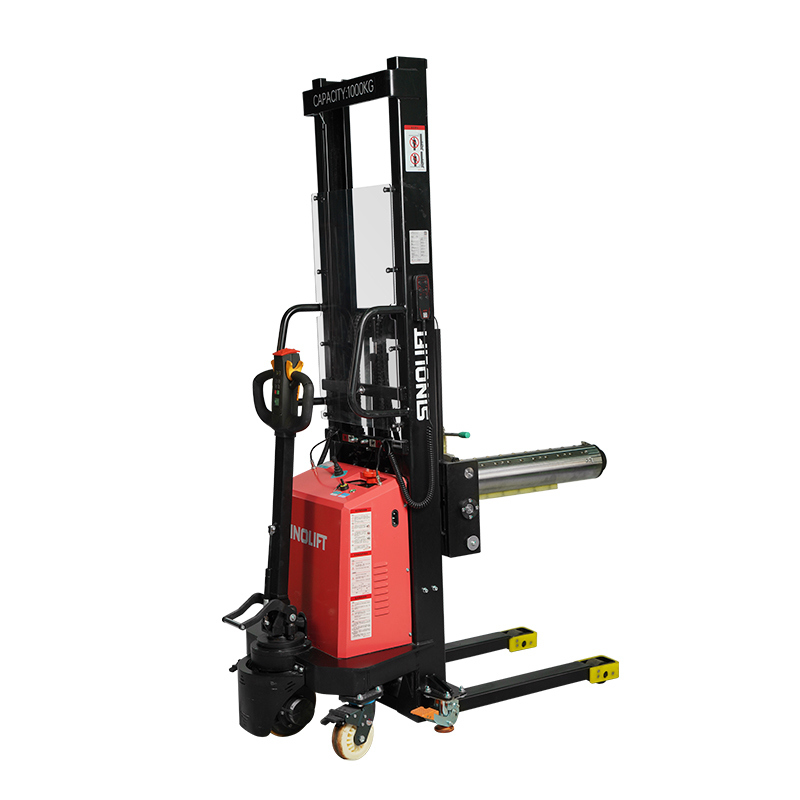

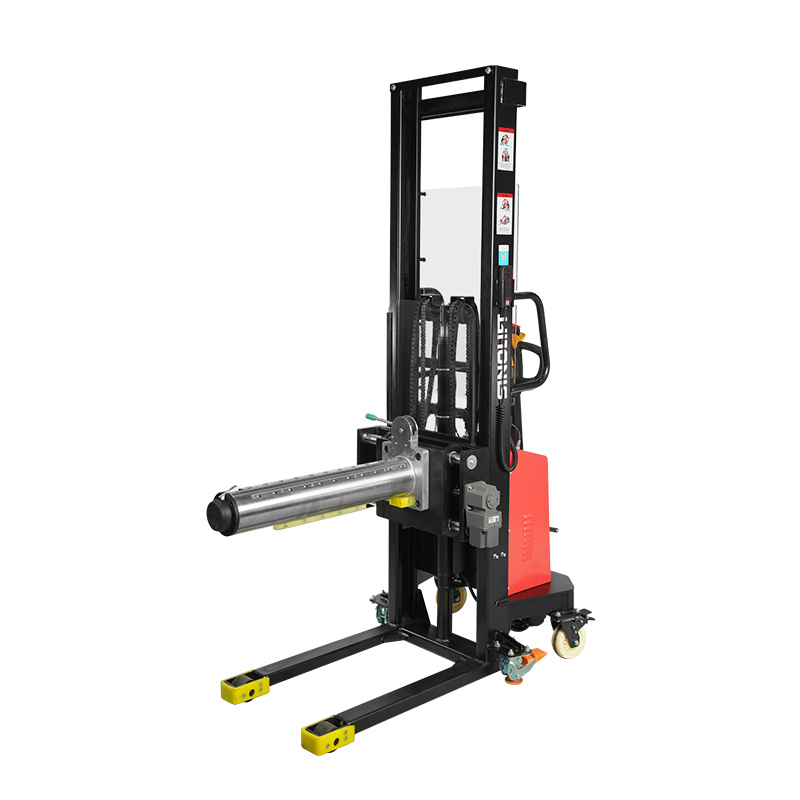

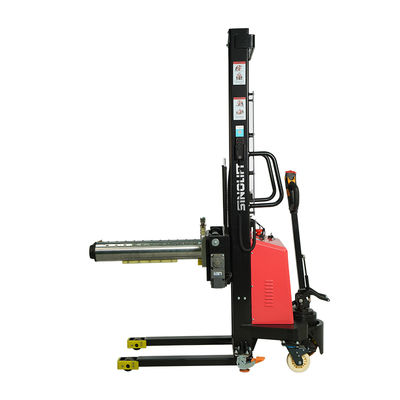

Sinolift ND99S Walkie-Type Lithium Cell Reel Truck
The ND99S Walkie-Type Lithium Cell Reel Truck is a versatile material handling solution for the lithium battery industry, film rolls, and paper rolls. With a load capacity of up to 1.0 tons, dual electric/semi-electric modes, and intelligent push-pull operation, it ensures fast, stable, and safe lifting. Designed for easy one-person operation, narrow spaces, and efficient loading/unloading.
Product Specifications
Model | ND99S1 | ND9952 | |
Drive Type | Hydraulic | Hydraulic | |
Rated Load | kg | 1000 | 1000 |
Load Center | mm | 650 | 650 |
Minimum Height | mm | 650 | 650 |
Maximum Height | mm | 1960 | 1960 |
Overall Length | mm | 1496 | 1496 |
Overall Width | mm | 780 | 780 |
Overall Height | mm | 2200 | 2200 |
Cantilever Specification | mm | Ø295*720 | Ø395*720 |
Front Wheel Specification | mm | Ø80-70 | Ø80-70 |
Rear Wheel Specification | mm | Ø205X75 | 205X75 |
Lifting Motor | kw | DC24V/1.2 | DC24V/1.2 |
Driving Motor | kw | DC24/0.75 | DC24/0.75 |
Power Supply Specification | V/Ah | DC24/125AH | DC24/125AH |
Battery Type | Lithium Iron Phosphate (LiFePO₄) | Lithium Iron Phosphate (LiFePO₄) | |
Drive Control Type | DC Speed Control | DC Speed Control | |
Noise Level | Db | ≤70 | ≤70 |
Steering Type | Mechanical Steering | Mechanical Steering | |
Braking Mode | Electromagnetic Brake | Electromagnetic Brake | |
Net Weight | kg | 730 | 740 |
Lifting Speed | mm/s | 103 | 103 |
Side Shift Mechanism | Ball Screw | Ball Screw | |
Side Shift Motor | Kw | DC24V/0.4 | DC24V/0.4 |
